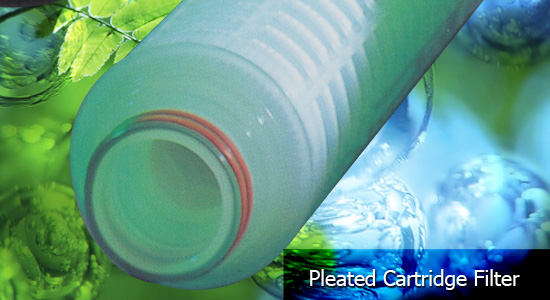

Pleated Cartridge Filter

SPA™ (SP&P Absolute Pleated Filter)

Exclusively contrcuted with the polypropylene multidensity matrix layer, SP&P filter cartridge provide absolute filtration rates.

• Microelectronics: Dl water, Pre-filtration for R/O membrane filtration.
• Pharmaceuticals: intermediates, solvents, membrane prefiltration filter.
• Chemicals: reagents (99.9%), refinement, precision chemicals
• Food and beverage: beer, vegetable oils, soft drinks, juices, bottled water
• Water industry: washers, high purity water, drinking water, resin trap
• General industry: precious metals, catalysis, sewage

• Particle retention ratings: 0.6um, 1.2um, 2.5um, 4.5um, 10um
• Structure
  • Matrix: polypropylene
  • Bonding: complete thermal bond
  • External cage: polypropylene
  • Core: polypropylene (reinforced)
  • Side seal: polypropylene
  • End cap: polypropylene
  • O-ring materials: Silicone, EPDM, Viton, Buna-N
• Sizes
  • Length DOE: 250mm, 500mm, 750mm, 1000mm, 10", 20", 30", 40"
  • Length SOE: O-ring sealed standard housing
  • Cartridge I.D. DOE: 32.1mm
  • Cartridge O.D.: 69.5mm
• Operation conditions
  • Replacement pressure: 2 kgf/cm²
  • Maximum operating temperature: 80°C
  • Maximum operating pressure:
    5kgf/cm² at below 21°C
    2kgf/cm² at below 70°C
  • * Damage can result if this product is used at temperatures above 80°C

SPN™ (SP&P Nominal Pleated Filter)

An economical filter for general purpose. It provides high flow rate and low maintenance cost ofr high performance fluid filtration.

• Economical and convenient bulk package
• Polypropylene matrix for chemical and thermal compatibility
• Application
  • RO/Dl prefiltration, water, liquid recycling, solvent, beverage, wine, high purity reagent.
• Data
  • Particle retention ratings: 0.2um, 0.45 um, 1 um, 3 um, 5 um, 10 um, 30 um
  • Matrix material: polypropylene
  • Maximum operating temperature: 80°C
